Overview
The BodaCOM 6000 BU/RB Explosion-proof Series is a high-performance, high-bandwidth, multi-functional industrial explosion-proof wireless AP designed for reliable wireless communication in hazardous industrial environments. Supporting 2.4 GHz and 5.8 GHz frequency bands, it adopts advanced MIMO technology and is compatible with 802.11 a/b/g/n/ac/ax/be protocols. The series features non-overlapping frequency channel settings and strong anti-interference capability, ensuring stable and high-speed data transmission for critical industrial IoT applications in oil fields, chemical plants and mining areas. It is equipped with explosion-proof hardware and meets strict national safety standards.
Built specifically for flammable and explosive atmospheres, the BodaCOM 6000 BU/RB industrial explosion-proof wireless AP is certified to meet national explosion-proof safety standards (IIC/IIIC level). It features a stainless steel casing that is anti-corrosion and anti-rust, ensuring long-term durability in harsh conditions. The device supports IP68 ingress protection and is designed to operate reliably in a wide temperature range of -40℃ to 80℃. With integrated anti-flammability, anti-static and electromagnetic shielding functions, it provides comprehensive protection against industrial hazards, making it ideal for Zone 1/Zone 2 hazardous areas.
As a secure and manageable industrial explosion-proof wireless AP, the BodaCOM 6000 BU/RB Explosion-proof Series supports centralized management via AC controllers, enabling automatic AP unification and network grouping. It is equipped with flexible bandwidth control to prioritize critical services, ensuring efficient and fair resource allocation. Widely deployed in key hazardous scenarios including oil fields, underground pipelines, intelligent storage, chemical plants, pharmaceutical workshops and energy bases, the series delivers stable, interference-resistant wireless links to support video surveillance, industrial control and data collection, helping enterprises build safe and efficient wireless networks in explosive environments.

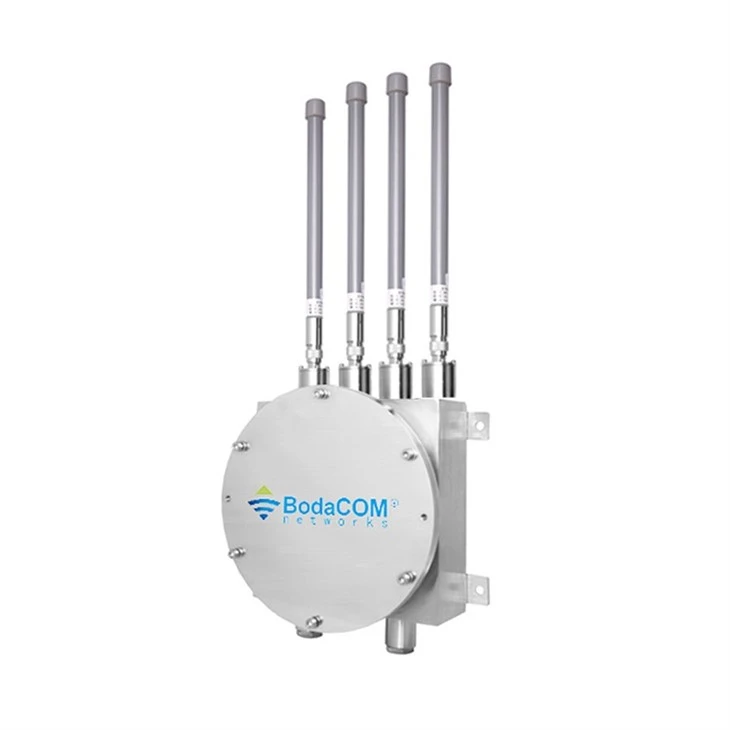

Product Images
Product Features
types of CNC machining
Lorem ipsum dolor sit amet consectetur adipisicing elit.
IIC/IIIC level explosion-proof certification
Certified to Ex db mb IIC T6 Gb and Ex tb mb IIIC T80℃ Db, suitable for Zone 1/Zone 2 gas explosive hazardous areas and Zone 2 dust explosive hazardous areas, fully compliant with national explosion-proof safety standards.
Stainless steel casing & IP68 ingress protection
Stainless steel enclosure with anti-corrosion and anti-rust properties, combined with IP68 waterproof and dustproof protection, ensuring reliable operation in harsh industrial environments.
Dual-band & high-speed wireless performance
Supports 2.4GHz, 5.8GHz or dual-band concurrent modes, compatible with 802.11 a/b/g/n/ac/ax/be protocols, delivering high bandwidth and strong anti-interference capability for industrial IoT applications.
Wide temperature range & robust environmental adaptability
Operates stably in a temperature range of -40℃ to 80℃, with built-in anti-flammability, anti-static and electromagnetic shielding functions to resist extreme industrial hazards.
Flexible power supply & easy installation
Supports AC 100–240 V, DC 8–30 V (optional) and PoE 48–55 V (optional). Stainless steel mounting kit enables convenient and reliable installation in hazardous areas.
Comprehensive network functions & secure management
Supports VLAN, VPN passthrough, routing, firewall and QoS traffic control. Centralized management via AC controllers, with MAC access control and multi-level user authority to ensure network security.
Specifications
|
Model |
CF2Ex |
CF5Ex |
CF52Ex |
XF5Ex |
XF52Ex |
EF5Ex |
|
RF Interface |
2.4GHz×2 |
5.8GHz×2 |
2.4GHz×2 |
5.8GHz×2 |
2.4GHz×2 |
5.8GHz×2 |
|
Frequency |
2.4GHz |
|||||
|
Connector Type |
N-type connector |
|||||
|
Modulation Mode |
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
||||
|
Channel Bandwidth |
20/40MHz |
20/40/80MHz |
20/40/80/160MHz |
20/40/80/160/320MHz |
||
|
Max Transmit Power |
30dBm |
27dBm |
5.8G: 30dBm |
28dBm |
2.4G: 29dBm |
26dBm |
|
Flow Control Management |
Supports independent uplink/downlink flow configuration for each remote site |
|||||
|
Ethernet |
2×10/100/1000BASE-T Ethernet ports, SFP optical port (optional) |
|||||
|
Network Functions |
Basic Network Services: Supports VLAN (802.1Q), DHCP, NAT, IPv6 Routing & Security: Supports routing mode, firewall, user isolation, packet analysis & filtering Service Optimization: Supports VPN passthrough, client bandwidth control, real-time traffic display, multi-SSID, QoS traffic control |
|||||
|
Management Interface |
Chinese management UI; English management software (optional) |
|||||
|
Management Mode |
BodaCOM Config, Telnet |
|||||
|
Management Access Protection |
Multi-level user password authority |
|||||
|
SNMP |
Supports SNMP v1, v2c, v3 |
|||||
|
Wireless Security |
OPEN, WEP, 802.11iOPEN,WEP,802.11i |
|||||
|
Authentication |
802.1X-RADIUS, compatible with EAP-ELS, EAP-TTLS, PEAP, EAP-AKA, EAP-SIM; supports encryption: WEP, TKIP, AES |
|||||
|
Network Protection |
MAC address control/filtering, broadcast/multicast suppression, port isolation, AC |
|||||
|
RF (Radio Frequency) |
ETSI EN 301 893 V1.7.1 (2012-06); ETSI EN 62311: 2008 |
|||||
|
Safety |
EN 60950-1: 2006 |
|||||
|
EMC |
ETSI EN 301 489-17 V2.2.1 (2012-09) |
|||||
|
Environmental Protection |
RoHS, WEEE |
|||||
|
Power Consumption |
<15 W |
<15 W |
<24 W |
<15 W |
<25 W |
<16 W |
|
Power Supply |
Power Supply: AC 100–240 V; DC 8–30 V (optional); PoE DC 48–55 V (optional) Indoor Unit Installation: DIN-rail or wall-mount Power Supply Protection: Input overvoltage/undervoltage, output overvoltage, per-port overcurrent/short-circuit protection EMI (Conducted/Radiated): Conducted Emission (CE) / Radiated Emission (RE):meets EN 55022 CLASS B Surge Protection: AC input withstands 250 V/IN |
|||||
|
Explosion-proof Certification |
Ex db mb IIC T6 Gb; Ex tb mb IIIC T80℃ Db |
|||||
|
Protection |
IP68 |
|||||
|
Dimensions (mm) |
270×270×140 |
|||||
|
Weight |
Approx. 8.6 kg |
|||||
|
Operating Humidity |
5–95% (non-condensing) |
|||||
|
Operating Temperature |
-40℃ to 80℃ |
|||||
Networking Mode
