Product Introduction
The BodaCOM 6000 BU/RB Series is a compact, high-performance industrial-grade indoor wireless AP engineered for reliable, high-density Wi-Fi coverage in enclosed industrial environments. Supporting flexible band configurations, it offers 2.4 GHz single-band, 5.8 GHz single-band, and concurrent 2.4 GHz+5.8 GHz dual-band operation to adapt to diverse indoor connectivity needs. Powered by advanced MIMO technology, the series complies with 802.11 a/b/g/n/ac/ax/be protocols, delivering robust throughput and anti-interference performance to support seamless data transmission in factory workshops, office zones, and logistics centers.
Built for indoor industrial deployment, the BodaCOM 6000 BU/RB industrial-grade indoor wireless AP features a compact metal casing and supports DIN-rail or wall-mount installation, making it ideal for space-constrained industrial environments. It offers flexible power options: AC 100–240 V or DC 8–30 V (optional), with built-in surge, overvoltage, and short-circuit protection to ensure stable operation. The device integrates rich Layer 2/Layer 3 network functions including VLAN tagging, VPN passthrough, DHCP, NAT, static/dynamic routing, and stateful firewall, while supporting precise QoS traffic control to prioritize critical industrial services.
As a secure, manageable industrial-grade indoor wireless AP, the BodaCOM 6000 BU/RB Series supports centralized management via AC controllers, with MAC Control List (MCL) and multi-level user access control to enhance network security. A built-in hardware watchdog monitors both wireless links and wired Ethernet ports, enabling automatic fault recovery and 24×7 uninterrupted operation. It is widely deployed in key indoor industrial scenarios: smart manufacturing workshops, industrial park office areas, warehouse logistics zones, large-scale venues, and intelligent building systems, providing stable, low-latency wireless connectivity for video surveillance, industrial control, IoT sensor data, and voice communication, helping enterprises build efficient, secure industrial wireless networks.

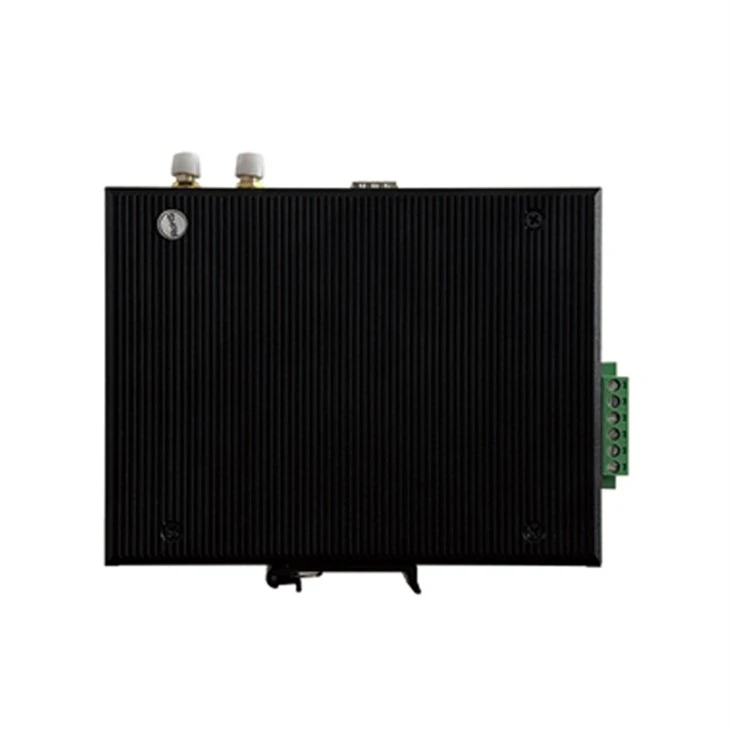

Product Images
Product Features
Industrial-grade indoor wireless AP design
Compact structure, metal enclosure, and stable performance, specially designed for industrial indoor environments such as workshops, warehouses and factory buildings.
Dual-band & high-speed wireless performance
Supports 2.4 GHz, 5.8 GHz or dual-band concurrent working modes, with XIF5, XIF52 and EIF5 models supporting 1024QAM for higher rate, lower latency and stronger anti-interference ability.
Flexible power supply & easy installation
Supports DC power supply, PoE power supply and AC power supply, suitable for various indoor power supply conditions. It can be installed by DIN-rail or wall mounting, which is convenient and fast.
Complete industrial security & protection
Built-in surge protection, electrostatic protection, over-voltage and over-current protection, ensuring stable and reliable operation under complex electromagnetic environment.
Rich network functions & strong compatibility
Supports VLAN, VPN transparent transmission, routing mode, firewall, bandwidth control and QoS. It can work with various switches, cameras and industrial terminals.
Stable management and 24×7 uninterrupted operation
Supports local management and centralized AC controller management. Built-in hardware watchdog ensures uninterrupted and stable operation for a long time.
Product Parameters
|
Model |
CIF2 |
CIF5 |
CIF52 |
XIF5 |
XIF52 |
EIF5 |
|
RF Interface |
2.4 GHz × 2 |
5.8 GHz × 2 |
2.4 GHz × 2 |
5.8 GHz × 2 |
2.4 GHz × 2 |
5.8 GHz × 2 |
|
Operating Frequency Band |
2.4 GHz, 5.8 GHz |
|||||
|
Connector Type |
SMA connector |
|||||
|
Modulation Mode |
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM |
|||
|
Channel Bandwidth |
20/40 MHz20/40 MHz |
20/40/80 MHz |
20/40/80/160 MHz |
20/40/80/160/320 MHz |
||
|
Max Transmit Power |
30 dBm |
27 dBm |
2.4 GHz: 30 dBm |
28 dBm |
2.4 GHz: 29 dBm |
26 dBm |
|
Flow Control Management |
Supports independent uplink/downlink flow configuration for each remote site |
|||||
|
Ethernet |
1 × 10/100/1000BASE-T Ethernet port |
|||||
|
Network Functions |
Supports VLAN (802.1Q), VPN passthrough, DHCP, NAT, routing mode, firewall, client bandwidth control, user isolation, real-time traffic display, multi-SSID, IPv6, packet analysis & filtering, QoS traffic control |
|||||
|
Interface |
Chinese management UI; English management software (optional) |
|||||
|
Management Mode |
BodaCOM Config, Telnet |
|||||
|
Management Access Protection |
Multi-level user password authority |
|||||
|
SNMP |
Supports SNMP v1, v2c, v3 |
|||||
|
Authentication |
802.1X-RADIUS, compatible with EAP-ELS, EAP-TTLS, PEAP, EAP-AKA, EAP-SIM |
|||||
|
Network Protection |
MAC address control/filtering, broadcast/multicast suppression, port isolation, ACL |
|||||
|
RF (Radio Frequency) |
ETSI EN 301 893 V1.7.1 (2012-06); ETSI EN 62311:2008 |
|||||
|
Safety |
EN 60950-1:2006; EN 60950-22:2008 |
|||||
|
EMC (Electromagnetic Compatibility) |
ETSI EN 301 489-17 V2.2.1 (2012-09) |
|||||
|
Environmental Protection |
RoHS, WEEE |
|||||
|
Power Consumption |
<15 W< |
<15 W |
<24 W |
<15 W |
<25 W |
<16 W |
|
Power Supply |
AC: 100–240 V; DC: 8–30 V (optional); PoE: DC 48–55 V (optional) Installation: DIN-rail or wall-mount Conducted Emission (CE) / Radiated Emission (RE): meets EN 55022 CLASS B Surge protection: AC input withstands 250 V/IN |
|||||
|
Material |
Metal casing |
|||||
|
Dimensions (mm) |
155 × 140 × 35 |
|||||
|
Weight |
Approx. 0.6 kg |
|||||
|
Operating Temperature |
-40°C to 75°C-40℃ ～ 75℃ |
|||||
Network Topology
