Product Introduction
The BodaCOM 4131 EF2 is an outdoor wireless network bridge device by BodaXun, supporting 5150-6425MHz frequency bands and 5.8GHz (2x2) transmission with speeds up to 2.3Gbps. It delivers outstanding outdoor performance and exceptional IP67-rated waterproof, dustproof, and lightning protection. Its external antenna design and optical/electrical uplink port support enable flexible deployment, allowing easy network configuration and cost-effective investment.

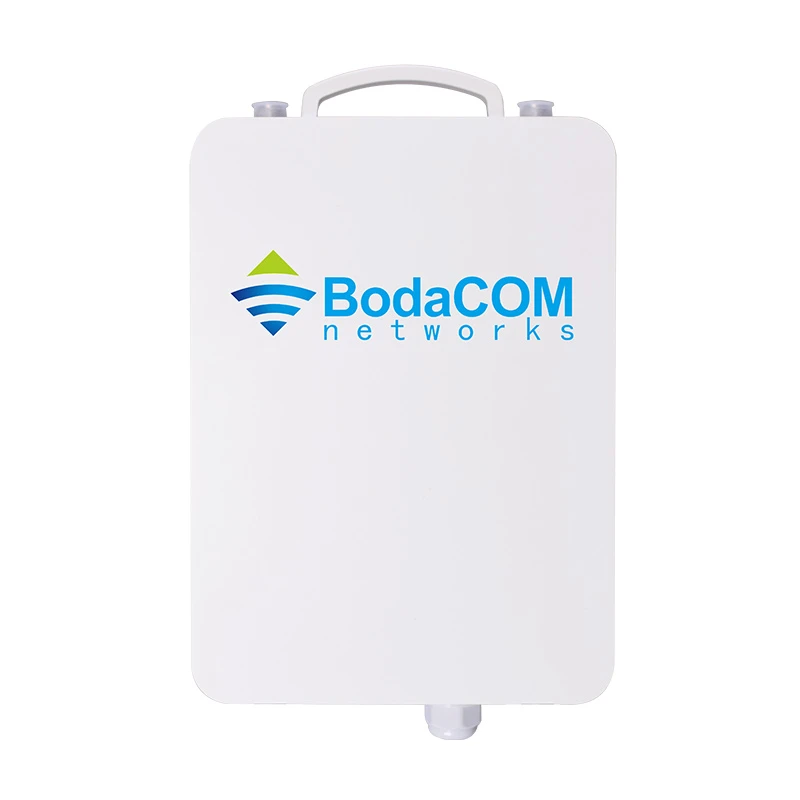

Product Images
Product Features
High-speed access guarantee
Delivers up to 2.3Gbps transmission speed with fiber-grade bandwidth, meeting high-bandwidth service demands.
01
Smart interface design
Equipped with both 2.5G electrical and optical ports, it supports flexible power supply to address connectivity challenges across varying distances.
02
Wideband technology support
320MHz ultra-wideband technology is adopted to fully cover the 5.1-6.4GHz working frequency band.
03
Enhanced protection features
IP67-rated waterproofing with professional-grade components ensures reliable operation in harsh environments.
04
Product Parameters
|
Product model |
Product Parameter |
|
Service frequency |
5150-6425MHz |
|
Channel bandwidth |
20|40|80|160|320 MHz |
|
MIMO |
2x2 |
|
Service port |
11*2.5 Gigabit Ethernet port + 1*2.5 Gbps optical port |
|
Transmitting power |
26dBm |
|
Antenna |
External antenna |
|
Shell material |
Aluminium die casting |
|
Pilot lamp |
1*Power indicator, 1*System indicator, 1*Network port status light, 1*Optical port status light, and 1*Wireless signal indicator. |
|
Power supply mode |
802.11at, or DC 12V=3A |
|
Maximum power dissipation |
<16W |
|
Surge protection |
6KV |
|
Classification of waterproof |
IP67 |
|
Device size |
292*211*55mm (excluding the code holder) |
|
Weight of equipment |
2.65kg (excluding antenna) |
|
Environment |
Operating temperature: -30°C to 60°C; Operating humidity: 5% to 95% (no condensation) |
|
SSID hide |
Support |
|
Data encryption |
WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, WPA3-SAE |
|
User isolation |
Support |
|
DHCP |
DHCP Server, DHCP Client |
|
Restart and reset |
Supports restarting the device on demand or at scheduled intervals, and hardware/software reset |
|
Web-based management |
Support |
|
Manage VLAN |
Supports VLAN-managed devices |
|
SNMP |
Support |
|
Watchdog |
Support |
|
Firmware upgrade |
Support |
|
Configure backup |
Supports web upgrade |
|
Network management function |
Supports configuration import and export |
|
5.9-6.425GHz frequency is only available in certain countries. 5.9-6.425GHz frequency is not available in China |
|
Networking Methods
① Wireless transmission of backbone network ② Wireless bridging of long distance ③ Application in water conservancy and oil field
① Wireless data convergence of multiple points ② Wireless monitoring of multiple points
Application Scenarios
Forest Fire Prevention
Power Transmission and Transformation
Warehousing and Logistics
Smart Border Defense
Marine Fisheries
Onshore Wind Power
Solution
Onshore Wind Power
The BodaCOM 4131 EF2 outdoor wireless network bridge establishes a wireless transmission link, transmitting real-time images from the front-end fan installation site to the monitoring center. The fan equipment also features built-in WIFI coverage, enabling seamless connectivity with handheld devices, smartphones, computers, and other wireless-enabled devices.
Show More Solutions
Rail Traffic
Base Station Interconnection
Forest Fire Prevention
Power Transmission and Transformation
Smart Port
Smart Water Conservancy
