Product Introduction

The BodaCOM 4131 E523 is a high-performance wireless Internet bridge designed for the 5150-6425MHz frequency band. It delivers 2.3Gbps bandwidth through 5.8GHz 2x2 transmission, featuring excellent outdoor adaptability with IP67-rated protection and lightning protection. The device includes a 23dBi directional antenna, offering up to 15 kilometers of transmission range. Its flexible optical uplink port options facilitate diverse deployment scenarios, helping customers effectively control costs.

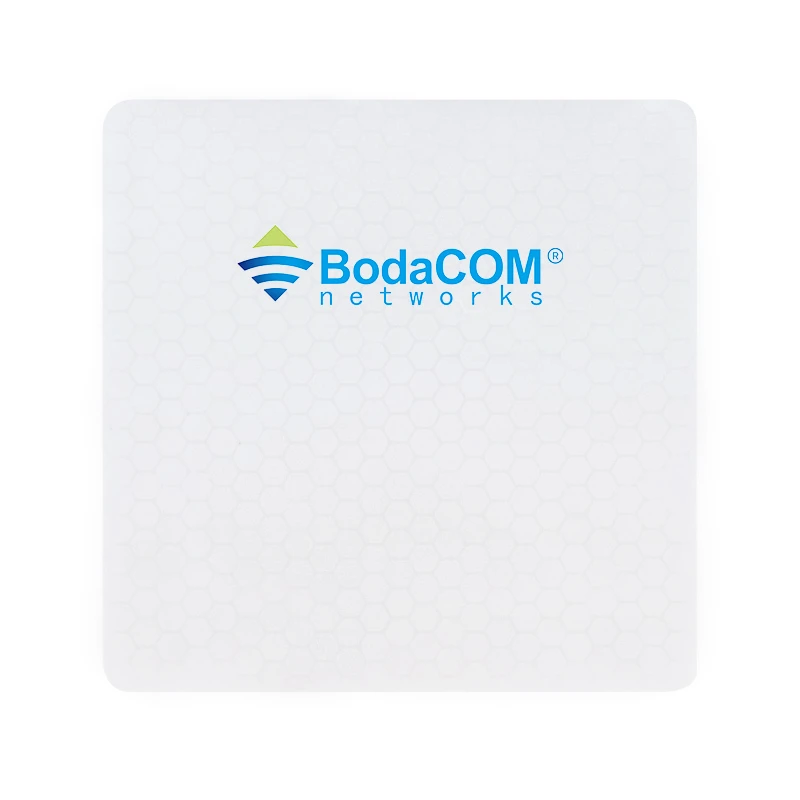

Product Images

Product Features

Its main functions include:

A maximum transmission rate of 2.3Gbps.

2.5G Ethernet ports (supporting POE power) and optical ports coexist to solve the problem of connection and power at different distances.

320MHz channel bandwidth, supporting 5.1-6.4GHz full frequency band operation.

IP67 waterproof design, with waterproof sealing strips and joints, durable and robust.

Product Parameters

Product model	Product Parameter
Service frequency	5150-6425MHz
Channel bandwidth	20\|40\|80\|160\|320 MHz
MIMO	2x2
Service port	112.5 Gigabit Ethernet port + 12.5 Gbps optical port
Transmitting power	26dBm
Antenna	23dBi integrated antenna
Shell material	Aluminium die casting
Pilot lamp	1Power indicator, 1System indicator, 1Network port status light, 1Optical port status light, and 1*Wireless signal indicator.
Power supply mode	802.11at, or DC 12V=3A
Maximum power dissipation	<16W
Surge protection	6KV
Classification of waterproof	IP67
Device size	33333375mm (excluding the code clip)
Weight of equipment	3.95kg (excluding antenna)
Environment	Operating temperature: -30°C to 60°C; Operating humidity: 5% to 95% (no condensation)
SSID hide	Support
Data encryption	WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE, WPA3-SAE
User isolation	Support
DHCP	DHCP Server, DHCP Client
Restart and reset	Supports restarting the device on demand or at scheduled intervals, and hardware/software reset
Web-based management	Support
Manage VLAN	Supports VLAN-managed devices
SNMP	Support
Watchdog	Support
Firmware upgrade	Support
Configure backup	Supports web upgrade
Network management function	Supports configuration import and export
Antenna
5.9-6.425GHz frequency is only available in certain countries. 5.9-6.425GHz frequency is not available in China

Networking Methods

Peer-to-peer Networking

① Wireless transmission of backbone network ② Wireless bridging of long distance ③ Application in water conservancy and oil field

Point-to-multipoint Networking

① Wireless data convergence of multiple points ② Wireless monitoring of multiple points

Application Scenarios

Petroleum and Petrochemicals

Offshore Monitoring

Marine Fisheries

Base Station Interconnection

Onshore Wind Power

Smart Mines

Solution

Marine Surveillance

Multiple wireless Internet bridge devices are installed on land to cover different sea areas. Data from fixed monitoring stations in each sea area is transmitted to the land-based central base station based on proximity. Temporary mobile monitoring stations can connect to the land-based central station using the same proximity principle. Those unable to connect to land can link to nearby fixed monitoring stations. For monitoring vessels, the system automatically switches to fixed monitoring stations as they move away from the coastline, or navigates between multiple fixed monitoring stations during their voyages.
